ESP8266 Tutorials - How to Make ESP8266 Module Breakout Boards

ESP-14 Break Out Board

                              Easily make your own DIY breakout for ESP-14. ESP8266 common breakout board does not have a bottom breakout SMD pads. To make a new Breakout Board for ESP14 module we can use two normal breakout board. its very easy and simple.

 Watch Video First



              I bought new ESP14 Module. But i don't have ESP-14 Module Breakout Board. In ESP14 Module in bottom have six pins SCLK, MOSI, GPIO-10, GPIO-9, MISO and CS0 pin.  So should use this pins for program to STM8 controller.  i think to use my ESP8266 common breakout board, its does not have a bottom breakout SMD pads. To make a new Breakout Board for ESP14 module we can use two normal breakout board. its very easy and simple.



 Step-1 (Use two normal breakout board)

2 x

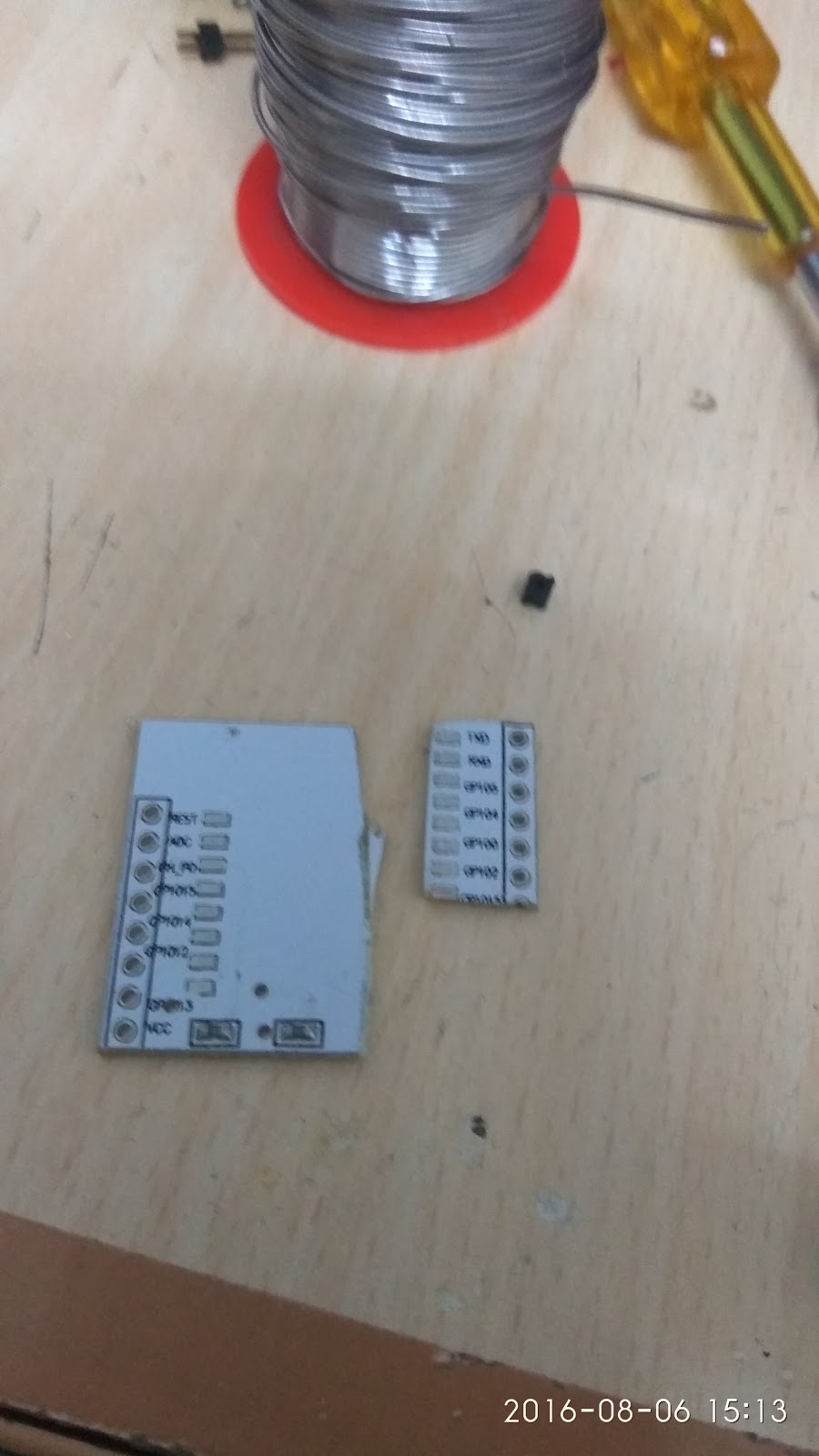

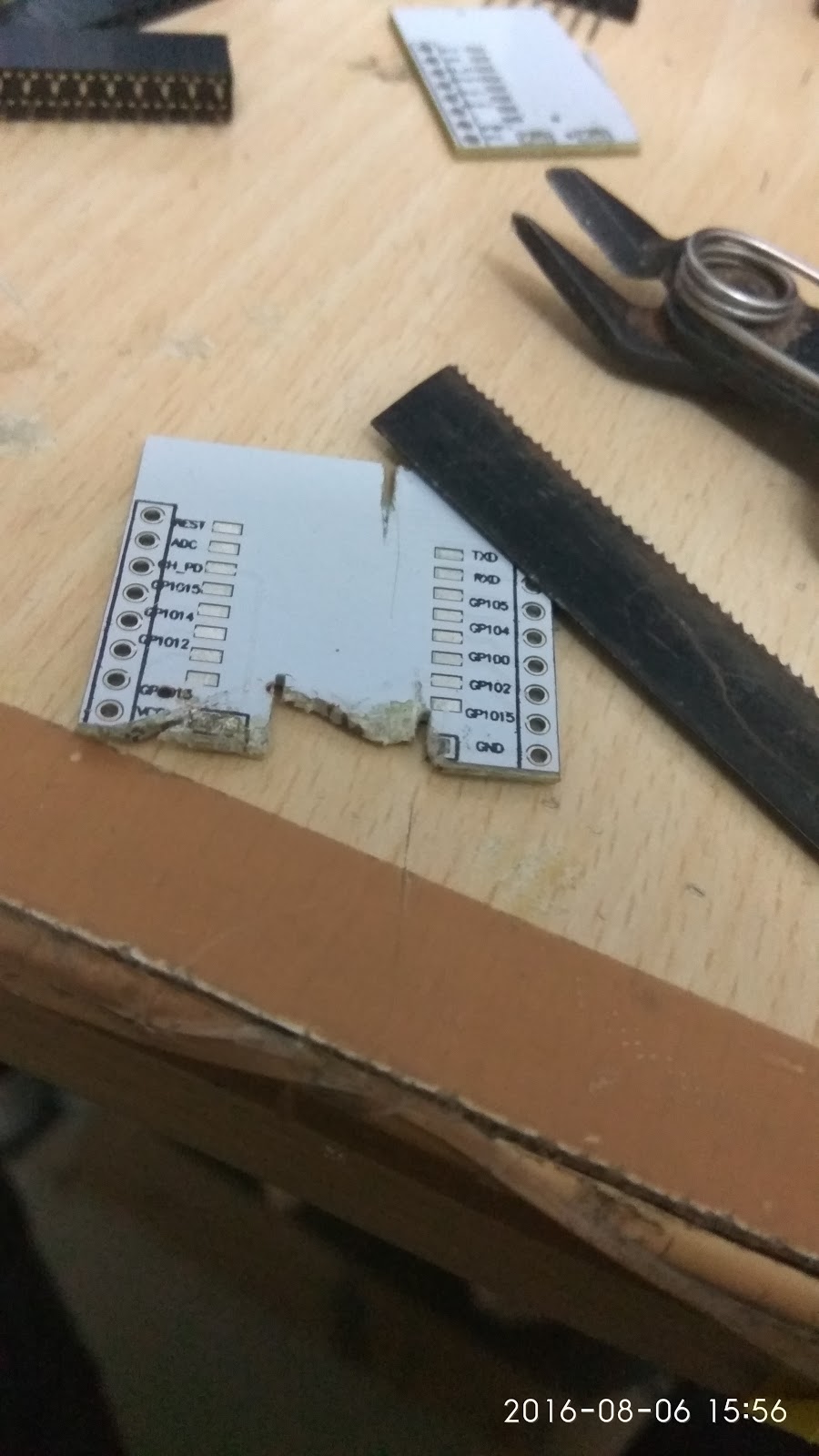

Step-2 (Cut one board as shown the below pic-1 and cut another board as shown pic-2)

Pic-1

Pic-2

Pic-1

 Step-3 (Solder ESP-14 board) Done!

ESP-07 Break Out Board-1

ESP-07 Break Out Board-2

Thanks Regards
